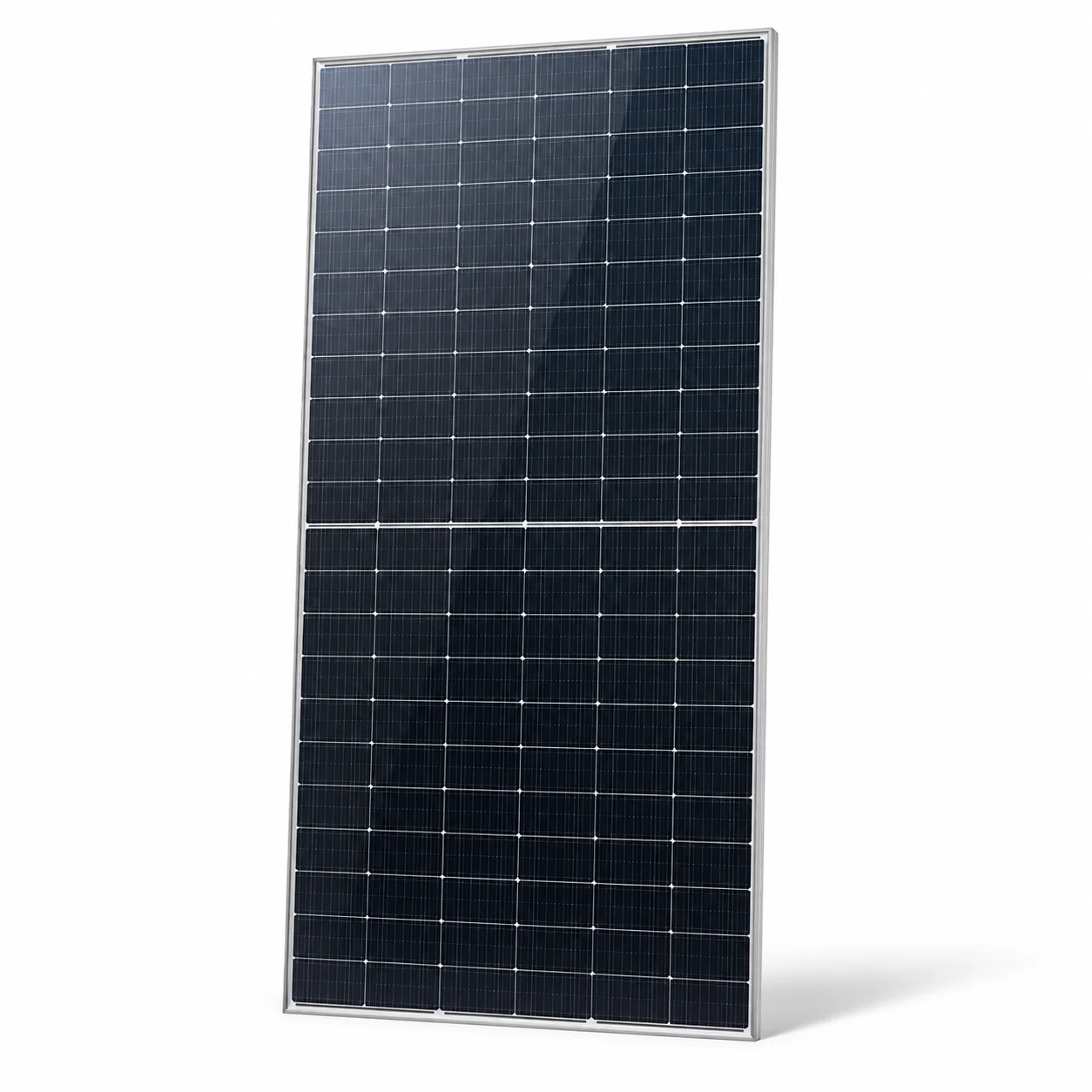

Jinku 66HL4M-(V) panel · 610–635 W

132-cell N-type module with 3.2 mm front glass and a 35 mm frame. Available from 610 to 635 W, with different construction and weight from the dual-glass 66HL4M-BDV version.

Model

66HL4M-(V)

Rated power options (STC)

610 / 615 / 620 / 625 / 630 / 635 W

Dimensions

2382 × 1134 × 35 mm

Weight

28.2 kg

N-type cells

132 (66 × 2)

Efficiency by version (STC)

22.58–23.51 %

Open-circuit voltage (STC)

48.63–49.43 V

Short-circuit current (STC)

16.01–16.36 A

Maximum system voltage

1000 / 1500 V DC

Maximum series fuse

30 A

Glass

3.2 mm

Junction box

IP68

Architecture

Conectada a red o aislada

Switchboards

Protección y seccionamiento AC/DC

Compliance

RETIE según equipo e instalación
